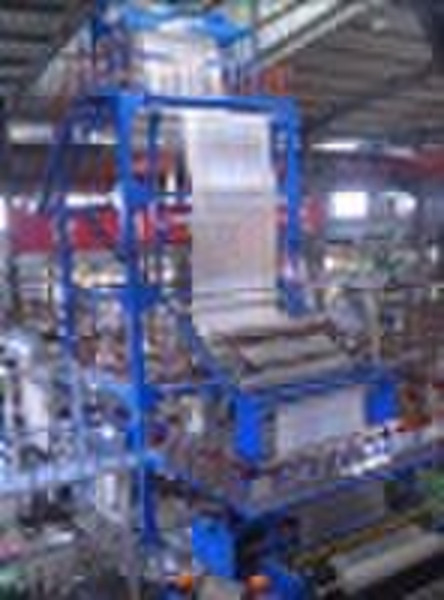

2SJ Multi-layer film blowing machine

Multi-layer extruder Haul-off unit is oscillating reverse by horizontal±180..Its structure is reasonable, so it economizes lots of energy and it is easy to maintain. By means of the reversing haul-off unit, films can be produced without requiting rotating die head, so the structure of die head is simplified. Reversing haul-off unit eliminates many problems of ling channel for the rotating die head, difficult sealing for the melt, compound leakage being easy, unsymmetrical heating, difficult maintenance, macro film tolerance and so on Haul-off unit reduces the degree of difficulty for recipe of the multi-layer co-extruded product and production technical processing control, if the blowing film line is with IBC (Internal Bubble cooling system),it can produce film with the quality of more high-grade transparency and better all round performance. The produced film is very flat, reel is high-quality by the use of reversing haul-off units. The film can meet the demand for the high-speed printing. Main Technical Variables TypeMSJ55-GS1300MSJ60-GS1500MSJ65-GS1700MSJ70-GS2200Diameter of screw120014001600L/D3333Film thickness (mm)0.02-0.120.02-0.120.02-0.120.02-0.12Max. output (kg/h)120150180240Raw materialMLLDPELLDPELDPEEVAScrew diameter (mm)55×360×365×370×3Screw L/D ratio L/D28:128:128:128:1Screw Max. rotation Speed (r/min)15-10015-10015-10015-100Extruder driving power (kw)22×330×337×345×3The way of esteem changing of extruderManual twin-station changing screen quicklyDie structureIBCWith or without IBC(Internal Bubble Cooling system)Air-ring structureDual tuyereReversting haul-off systemFilm turning modeHorizontalAngle of reversing±180±180Take-off Wide-up speed (m/min)45454545Total Power (kw)85110140220Overall dimensions (mm)1000×6000×90001000×600×95001100×7000×100001300×7000×12000Weight (T)15202530
