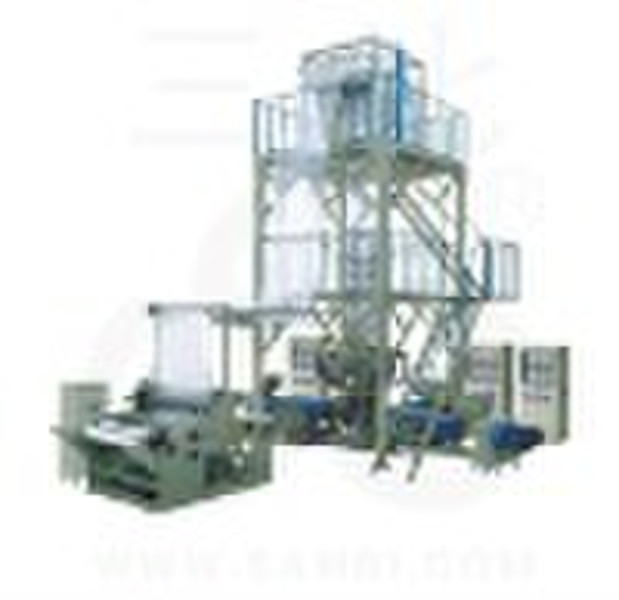

3-layer film blowing machine

Characteristics 1.Die head is layer type spiral mandrel, continuous 3600 rotation. 2.Screen pack changer design is reliable, safe in operation and change the fitter screen easier. 3.Various functional parts may be installed to the lies.,such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller, scrap collecting device. Use: The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home. It is optimum designed on the trounds of preference of analogous lines in foreign and home. The lines can be blown cotinuous 800/1500mm in fold width 0.08mm in the thickness packaging films, film has good insulation, for instance holding temperature, antihumid, antibreeze, anti-rain,anti-rost, insulation oxygen,oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding,salt vegetables, fresh milk, drink.Main Technical Variables Model3SJ-G1000 3SJ-G1200 3SJ-G1500Screw Diameter55×2 60×160×2 65×165×2 70×1Screw Ratio L/D 281281281Screw Speed15-150r/min15-150r/min15-150r/minMain Motor Power15Kw×2 18.5Kw×1 18.5Kw×2 22Kw×122Kw×2 30Kw×1Extrusion Output(Single)50kg/h80kg/h100kg/hRange of Die150 φ200200 φ250×1250 300×1Single-sided Thickness of Film0.01-0.10mm0.01-0.10mm0.01-0.10mmMax. Folding Width of Film1000mm1200mm1500mmElectric Total Capacity 76Kw88Kw102KwOverall Dimension6600×4100×5000mm6800×4300×6000mm7000×4800×7500mmWeight of Machine4T5T6T
