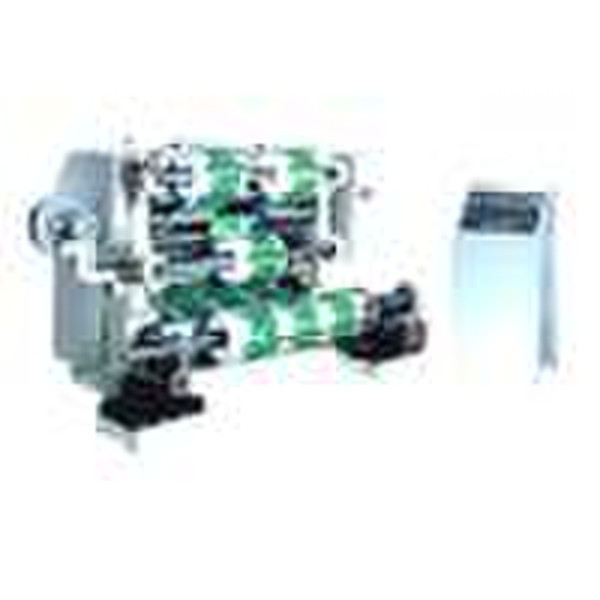

Slitting Machine

slitting machine 1) A kind of vertical and horizontal dual-purpose slitting machine Unwinding and rewinding are before or back of machine 2) Independent master control screen, more flexible and convenient 3) Unwinding and rewinding tension adopts magnetic power stroker controller 4) Unwinding is automatic deviation-rectifying, and photocell is suitable for tracking edge and color of transparent materials 5) Can be equipped with rim material feeding and rolling device (which can be selected in order) 6) Automatic meter counting TypeLFQ-700ALFQ-1100ALFQ-1300AMax.Width of Mother Roll700mm1100mm1300mmMAX.Diameter of Mother RollΦ600mmΦ600mmΦ600mmWidth of Final Roll30-600mm30-600mm30-600mmSlitting and Rewinging Speed5-160m/min5-160m/min5-160m/minTolerance of EPC<±0.5mm<±0.5mm<±0.5mmTotal Power2.7kw3.5kw3.5kwWeight of Machine1200kg1500kg1800kgOverall Dimension2000×1110×1400mm2400×1110×1400mm2600×1110×1400mm
