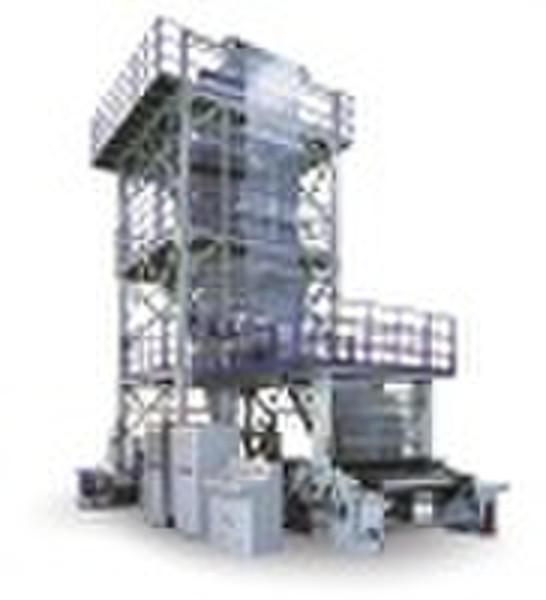

Three Layers Co-extrusion Film Blowing Machine Set

Performance and Characteristics This machine set is to satisfy the customer’s requirements of high quality, high out put film blowing equipment. It adopts the extruder with force feeding function, precision type ceramic heater, precision type double vents air ring, horizontal type rotary traction system, IBC inner cooling system, fully automatic surface friction type double cut double winders, computer concentrate control system, advanced technique and equipments. Compare with kindred equipment, it has the advantages such as more compact structure, higher output, better produce quality, less energy consume, easier operation. It can be widely used into various kind of high transparence packing film manufacture, and create the considerable economic benefit for you. Main Technical Parameter: Type SJ55-GS1300 SJ60-GS1500 SJ65-GS1800 SJ-GS2300 Max. Lay Flat Width (mm) 1200 1400 1700 2100 Film Layer 3 3 3 3 Film Thickness (mm) 0.02-0.12 0.02-0.12 0.02-0.12 0.02-0.12 Max. Output(kg/h) 200 250 300 400 Raw Material LLDPE,LDPE,EVAScrew Diameter(mm) 45/55/45 50/60/50 60/70/60 75/90/75 Screw L/D Ratio 30:1 30:1 30:1 30:1 Screw Max. Rotation Speed (r/min) 100 100 100 100 Extruding Driving Power(kw) 18.5/30/18.5 22/37/22 30/45/30 55/90/55 Die Structure IBC Film Tube Inner Cooling System Air-ring Structure Double Vents Air Ring Reversing Haul-off System Horizontal+-180c Take-off Wide-up Speed (m/min) 45-120 Total Power(kw) 150 280 280 350 Overall Dimensions(mm) According to actual machine Weight(T)
